GS-Base 22.1 has been released

GS-Base GS-Base Updates
1

New features in GS-Base 22.1 include Python integrations, new built-in functions and command to make using formulas in fields (of all types) much more easier.

FIELDS(start, end)

Creates an array with field values from a given record where "start" and "end" are 1-based field indexes (field1 <= field2). The arrays returned by it can be used in every built-in or external (e.g. UDF Python) functions that accept ranges/arrays of values. For example:

=fields(1, 2) returns e.g. {"abc"; 10}
=median(fields(2, 15)) returns the median for field values from the 2nd field to 15th field
=sum(fields(1, 100)) return the sum from field 1 to 100.

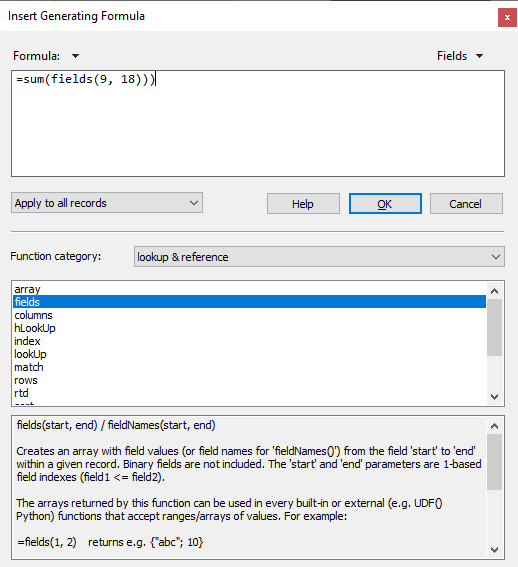

Insert > Generating formula

This command enables you to mass fill a given field in all records with calculation results based
on values of other fields in related records. It can be used for all field types.

It can be especially useful when combined with the UDF() Python functions that
can return to GS-Base any type of data (graphics or text) of any size to be inserted in the GS-Base binary
fields (LongText, Code, Images/files). You can, for example:

  • use the FIELDS(start, end) function to pass field values (and the FIELDNAMES(start, end) function for field names) as data series (up to the 16K field counter limit) to such Python functions to "mass"-generate charts in Image/Files field(s) in all records;
  • use the FIELDS(start, end) to archive all current Text/Number field values in the LongText fields;
  • populate any binary fields in all records with files, documents, graphics, reports based on other fields etc. See: Using Python functions as UDF()

*
*518×567 8.92 KB

Using Python functions as UDF() functions

Using the built-in UDF() (user-defined-) function you can call any Python modules/functions in formulas in GS-Base.
This can help you to significantly increase GS-Base functionality thanks to the large number of various Python modules and libraries including, for example, science, finance, graphics.

From GS-Base you can pass to Python functions any type of parameters: (double precision) numbers, text strings, ranges of field values as numeric arrays/matrices, automatically saved blocks of CSV data from field ranges.

GS-Base can accept from Python functions any type of data it supports in formulas: (double precision) numbers, text strings, numeric arrays/matrices, CSV data blocks and images/graphics/charts to be inserted in the LongText, Images/Files, Code binary fields.

UDF(module, function, type, parameter1, parameter2, …)

  • module - Python module name with full path, for example “c:\my_modules\some_functions.py”
  • function - function name as it appear in the above module, for example “my_function”
  • type - an index (0-5) specifying what type of data GS-Base should expect from the Python procedure. Possible values are:

    • 0 - a number

    • 1 - a matrix/array of numbers

    • 2 - a text string (up to 8192 characters)

    • 3 - a string/block of CSV data (of any size) to be inserted in the LongText/Code field

    • 5 - an image (binary data returned as standard Python “memoryview” binary data) to be inserted in the Images/Files field

Additionally, you can add to the “type” parameter the following flags:
32 - all ranges/arrays (of field) values passed from GS-Base to Python will be saved and pass to Python as blocks/strings of CSV data
64 - same as 32 except that CSV data is created and pass instead of an array only if there any non-numeric/text field values within that GS-Base field range.
If neither 32 nor 64 is used, if you specify a range as a parameter in the UDF() function, GS-Base will pass it as an array of numbers ignoring any text data. Rules used to save and parse such CSV data blocks are the same as for handling regular CSV files in GS-Base.

Python modules are plain text files with the "*.py" extension. Below is an example of such a file containing seven simple functions.

e:\example.py :

def function1():
return 10

def function2(a, b):
return a + b

def function3(text):
return ‘A new text with ’ + text + ’ inserted in the middle’

def function4(csvdata):
return csvdata

def function5(csvFilePath):
f = open(csvFilePath, ‘rb’)
file_content = f.read()
f.close()
return file_content

def function6(imageFilePath):
f = open(imageFilePath, ‘rb’)
file_content = f.read()
f.close()
return bytearray(file_content)

In GS-Base the above functions can be use as follows:

Installing Python and integrating it with GS-Base

You can download the standard Python package, among others, from Microsoft Store or directly from the Python project home page.

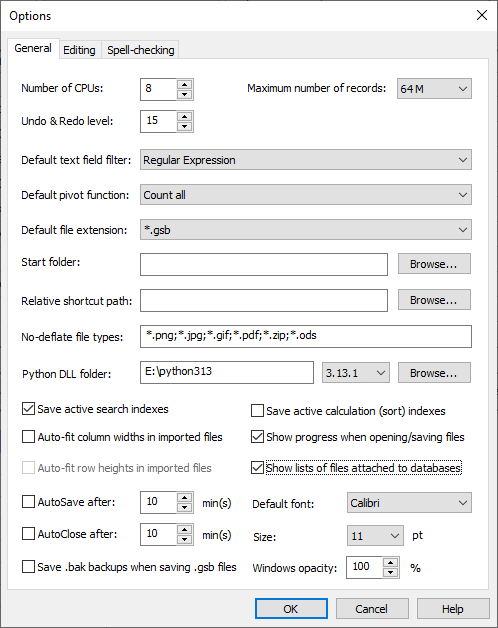

You must specify which Python version you would like to use with GS-Base, selecting a given version in GS-Base in the "Settings > Options > General" dialog box.

Unless you already have Windows system variables pointed to the Python installation folder, in the "Settings > Options > General" dialog box you must also specify the folder where the Python core library DLL (for example python39.dll for the selected version 3.9) file is located.

*
*498×628 16.3 KB
